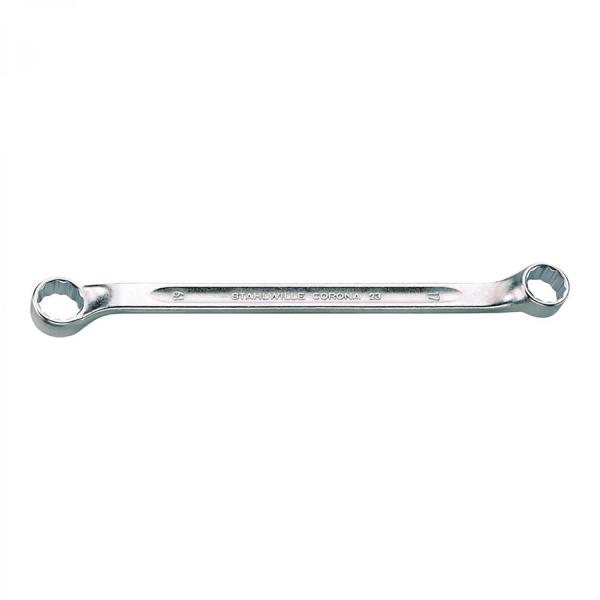

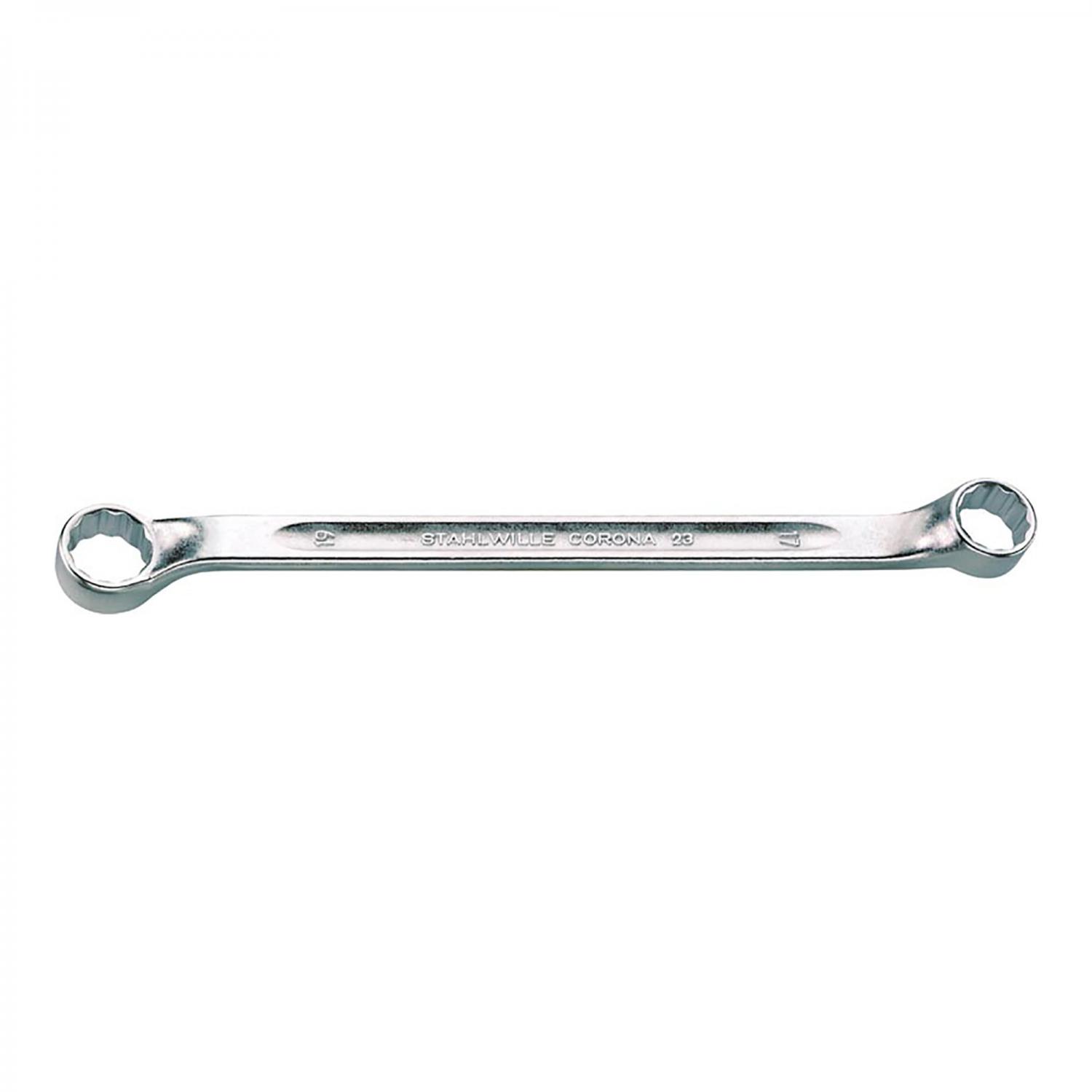

23 CORONA Double Ended Ring Wrenches

Stahlwille
Preview: SW020016-001-VH Preview: SW020016-001-VH
SW020016-001-VH
SW020016-001-VH

US$14.89 *

Prices plus shipping costs

Ready to go! In your hands soon.
(see shipping costs for details)

612 size:

  • Order number: SW020016-001
  • GTIN-13 (EAN) 4018754021659
  • Suppliernumber: 41070607
  • Weight: 0.041 Kg
  • Customs tariff number: 82041100
  • Country of origin (COO): Flag of Germany Germany
Description
Description
 metric size shallow offset Box-end head 10° offset AS-drive Anti Slip Surface: chrome-plated... more
Close menu


metric size
shallow offset
Box-end head 10° offset
AS-drive Anti Slip
Surface: chrome-plated
Material: Chrome-Alloy-Steel
DIN 897/ISO 10104 (metric size)
Made in Germany

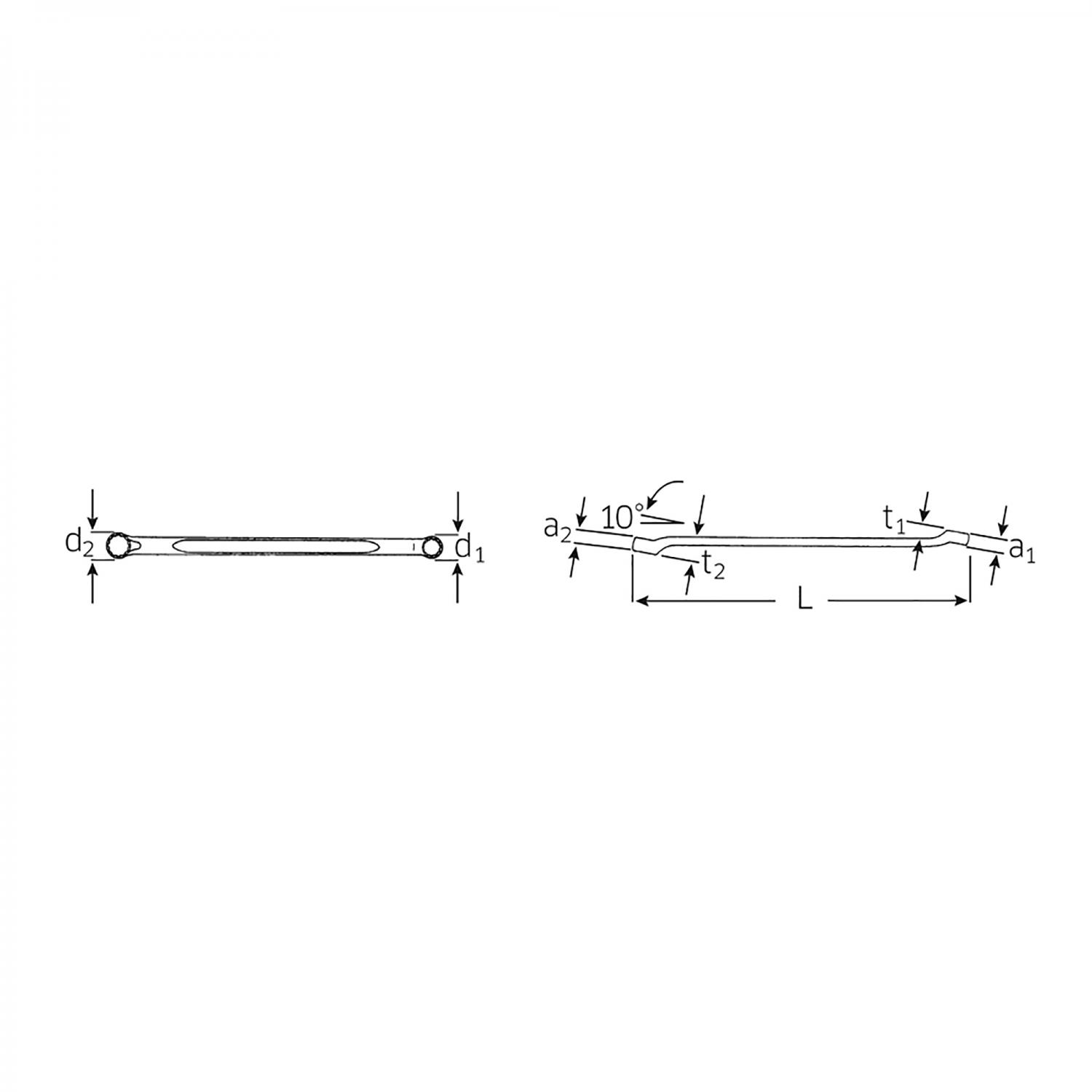

Stahlwille #Size

Weight (g)

L (mm)d1 (mm)d2 (mm)a1 (mm)a2 (mm)t1 (mm)t2 (mm)
410706076 x 7 mm411709,510,86778
410708098 x 9 mm4917912,113,37889
4107101110 x 11 mm6618814,615,98,59,5910
4107121312 x 13 mm7820317,318,69,510,51011
4107141514 x 15 mm10921920,121,410,511,51113
4107161716 x 17 mm14424822,724,111,512,51415
4107171917 x 19 mm16225024,12712,513,51518
4107181918 x 19 mm15725125,52712,513,51618
4107202220 x 22 mm22328028,531,313,514,51920
4107212321 x 23 mm28132829,832,913,514,51922
4107242724 x 27 mm42637634,338,614,5162224
4107303230 x 32 mm60842942,645,218182627
