US$7.44 *
Prices plus shipping costs
Ready to go! In your hands soon. (see shipping costs for details)
- Order number: HZ020967-001
- GTIN-13 (EAN) 4000896020683
- Suppliernumber: 450N-4X5
- Weight: 0.012 Kg
- Customs tariff number: 82041100
- Country of origin (COO): Germany
For powerful use Slim heads Shank with sturdy double-T-profile Surface: chrome-plated DIN... more
- For powerful use
- Slim heads
- Shank with sturdy double-T-profile
- Surface: chrome-plated
- DIN 3110, ISO 10102
- Made In Germany

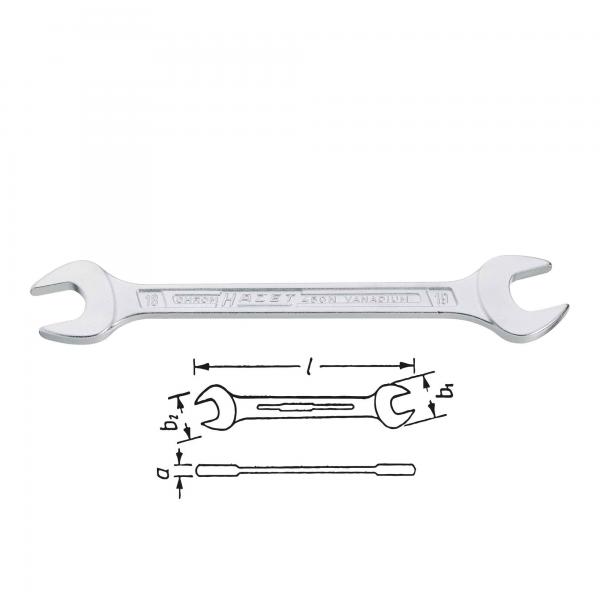

Hazet # | length l (mm) | thickness a (mm) | width b1 (mm) | width b2 (mm) |
450N-4X5 | 99.5 | 3.2 | 11.4 | 13.2 |
450N-5X5.5 | 99.6 | 3.6 | 13.4 | 15.1 |
450N-6X7 | 121.3 | 3.5 | 15.1 | 17.1 |
450N-8X9 | 139.0 | 3.8 | 18.5 | 21.0 |
450N-8X10 | 140.1 | 4.1 | 19.0 | 23.2 |
450N-10X11 | 155.7 | 4.6 | 23.2 | 25.2 |
450N-10X13 | 172.0 | 5.1 | 25.1 | 29.9 |
450N-12X13 | 172.7 | 5.1 | 27.1 | 29.1 |
450N-13X17 | 205.5 | 6.0 | 29.3 | 36.0 |
450N-14X15 | 187.8 | 5.7 | 30.9 | 32.8 |
450N-16X17 | 205.7 | 6.0 | 34.8 | 37.0 |
450N-16X18 | 205.7 | 6.0 | 34.8 | 38.3 |
450N-17X19 | 220.9 | 6.7 | 37.4 | 40.6 |
450N-18X19 | 221.2 | 6.7 | 38.6 | 40.6 |
450N-20X22 | 238.9 | 7.0 | 43.9 | 47.8 |
450N-21X22 | 238.0 | 7.0 | 44.8 | 46.8 |
450N-21X23 | 246.0 | 7.1 | 44.8 | 48.8 |
450N-22X24 | 254.6 | 7.1 | 47.8 | 51.9 |
450N-24X26 | 269.4 | 7.8 | 50.9 | 54.9 |
450N-24X27 | 269.0 | 7.8 | 50.9 | 57.0 |
450N-25X28 | 284.2 | 8.4 | 53.4 | 59.0 |
450N-27X32 | 303.8 | 9.1 | 58.0 | 67.3 |
450N-30X32 | 303.4 | 9.0 | 63.4 | 67.3 |
450N-32X36 | 343.2 | 10.1 | 66.9 | 75.2 |
450N-34X36 | 343.2 | 10.1 | 67.9 | 74.5 |
450N-36X41 | 396.7 | 10.5 | 74.6 | 81.1 |
450N-41X46 | 439.5 | 11.4 | 85.5 | 94.4 |
450N-46X50 | 498.0 | 12.3 | 94.3 | 102.2 |
