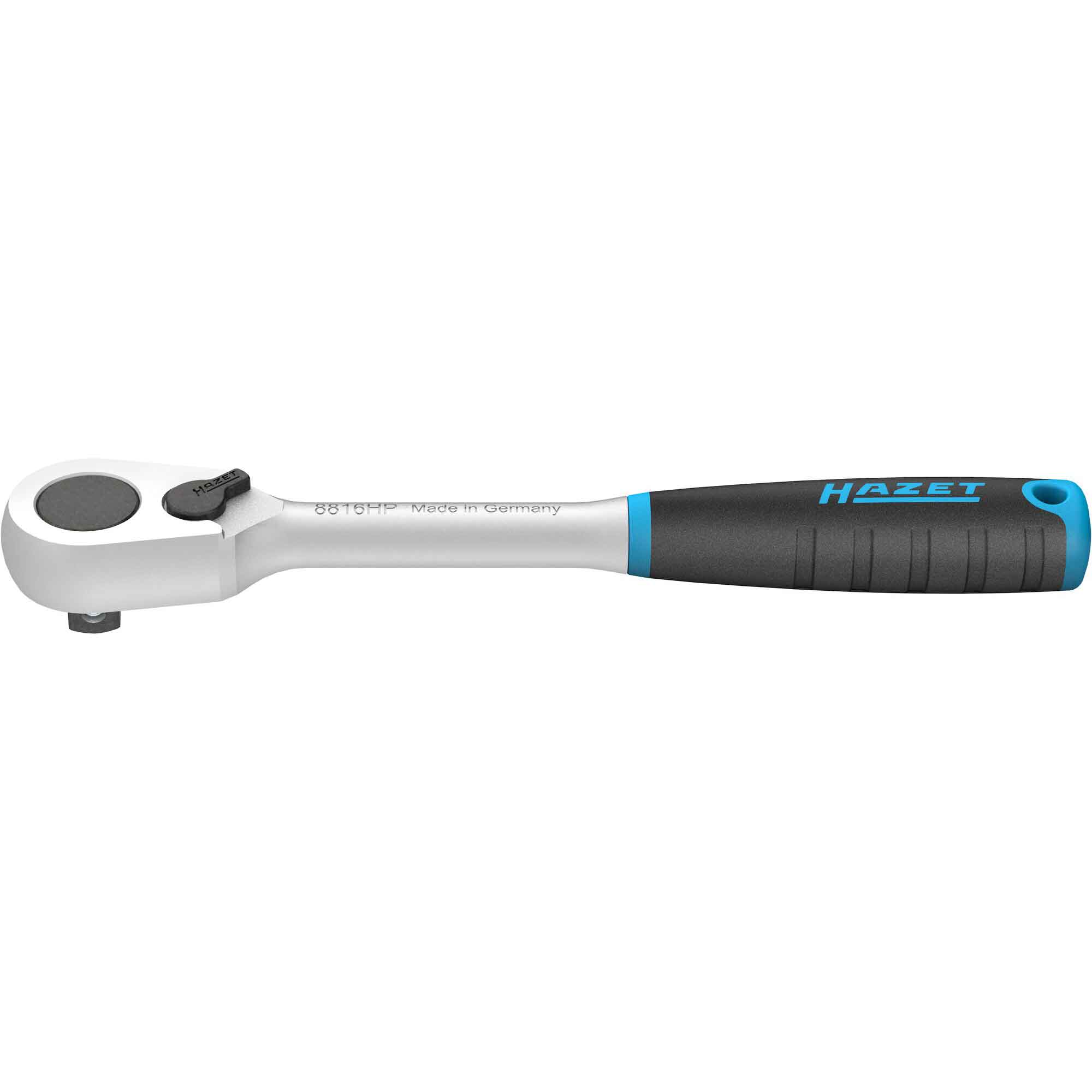

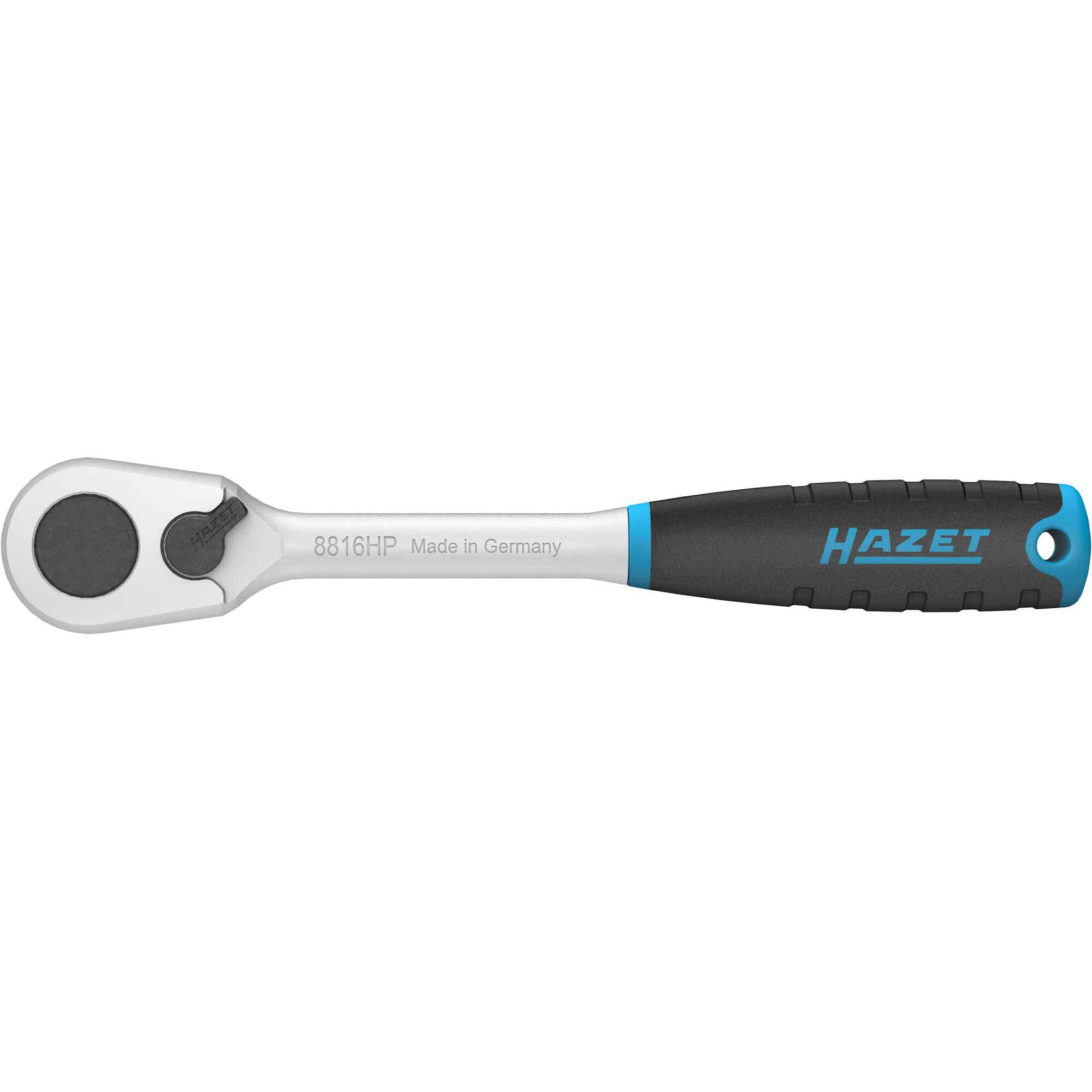

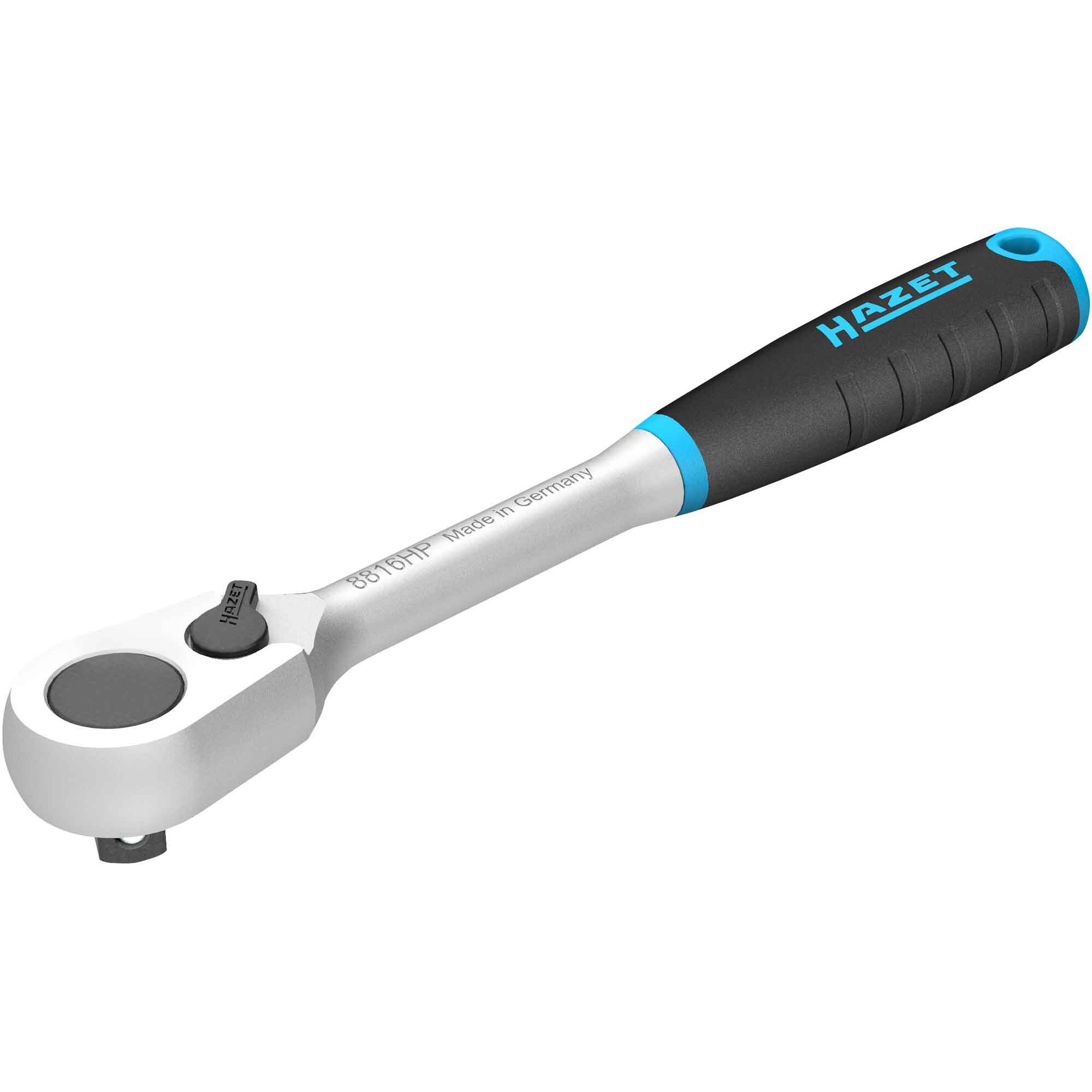

Hazet 8816HP 3/8" HiPer Reversible Ratchet

• Small actuation angle (4°) enables use in the tightest of spaces, e.g. engine, machine construction, agricultural vehicles and equipment, renewable energies (solar, wind turbines)
• Extremely higher performance for ratchets with comparable dimensions
• Latching function of the lever offers protection against unintentional switching
• Increased service life through the use of the latest lubricants in the ratchet mechanism
• Tight manufacturing tolerances ensure protection against penetrating contamination
• HAZET internal quality standards guarantee resilience far beyond the norm
• valuable, easy to clean, corrosion resistant
• Integrated suspension possibility in the handle
• VPA tested, static torque according to DIN 3122: 400 Nm (DIN 202 Nm)
• Number of teeth: 90
• Opening angle: 4°
• With locking ball
• HAZET 2-component handle
• Surface: chrome-plated
• DIN 3122, ISO 3315
• Made in Germany
• Output: Square, solid 10 mm (3/8 inch)
• Dimensions / length: 200 mm
• Net weight: 0.26 kg

HiPer – The Original
Developed and produced "Made in Germany"
Static AND dynamic – double precision in perfection
High permanent load for durability
Locking function of the lever – prevents unwanted switching
A lot more performance with the same dimensions
Strict production tolerances prevent dirt from getting in
Ergonomic shift lever
Integrated suspension option in the handle

Design drive / output : With locking ball

Handle : HAZET 2-component handle

Length : 200 mm

Net weight : 0.26 kg

Number of teeth : 90

Opening angle : 4 °

Output : Square, solid 10 mm (3/8 inch)

Standard : DIN 3122, ISO 3315

Surface : chrome-plated

Total length : 200 mm
