US$10.56 *
Prices plus shipping costs
Ready to go! In your hands soon. (see shipping costs for details)
- Order number: HZ020102-001
- GTIN-13 (EAN) 4000896042968
- Suppliernumber: 900-8
- Weight: 0.047 Kg
- Customs tariff number: 82042000
- Country of origin (COO): Germany

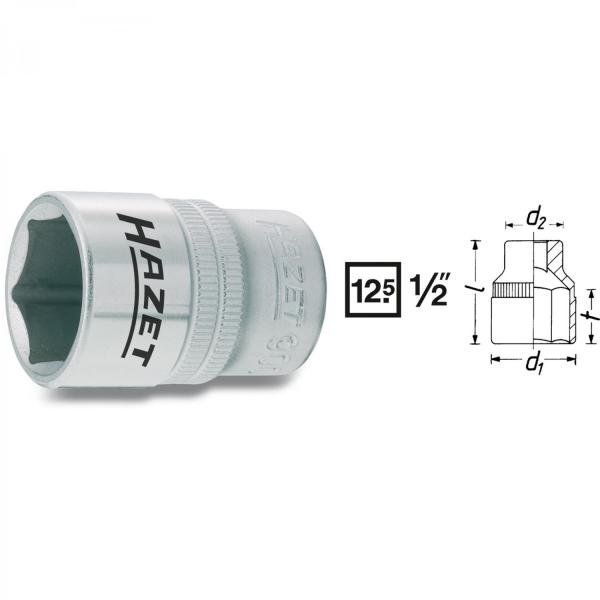

Hazet # length l (mm) dia. d1 (mm) dia. d2 (mm) depth t (mm) 900-8 38.0 12.0... more
Hazet # | length l (mm) | dia. d1 (mm) | dia. d2 (mm) | depth t (mm) |
900-8 | 38.0 | 12.0 | 22.0 | 7.8 |
900-9 | 38.0 | 13.5 | 22.0 | 8.8 |
900-10 | 38.0 | 14.9 | 22.0 | 10.8 |
900-11 | 38.0 | 16.4 | 22.0 | 10.8 |
900-12 | 38.0 | 17.5 | 22.0 | 11.3 |
900-13 | 38.0 | 18.8 | 22.0 | 11.3 |
900-14 | 38.0 | 20.3 | 22.5 | 11.8 |
900-15 | 38.0 | 21.5 | 23.2 | 11.8 |
900-16 | 38.0 | 22.7 | 23.6 | 12.2 |
900-17 | 38.0 | 24.1 | 22.0 | 12.7 |
900-18 | 38.0 | 25.4 | 22.4 | 14.2 |
900-19 | 38.0 | 26.6 | 23.0 | 14.2 |
900-20 | 38.0 | 27.8 | 24.0 | 14.2 |
900-21 | 38.0 | 29.0 | 25.0 | 14.1 |
900-22 | 41.5 | 30.4 | 26.0 | 17.6 |
900-23 | 41.5 | 31.4 | 26.0 | 17.6 |
900-24 | 44.0 | 32.6 | 26.0 | 18.2 |
900-25 | 44.0 | 33.9 | 26.0 | 17.9 |
900-26 | 44.0 | 35.1 | 24.0 | 17.8 |
900-27 | 46.0 | 36.2 | 25.0 | 19.7 |
900-28 | 47.0 | 37.5 | 26.0 | 20.6 |
900-29 | 50.0 | 38.7 | 27.0 | 23.4 |
900-30 | 50.0 | 40.1 | 28.0 | 23.3 |
900-32 | 50.0 | 42.3 | 28.0 | 23.0 |
900-34 | 52.0 | 46.0 | 28.0 | 23.3 |
900-36 | 57.0 | 49.0 | 28.0 | 25.6 |
- drive 12.5 = 1/2″
- With Traction profile
- With knurling
- For manual operation
- Surface: chrome-plated, polished
- DIN 3124, ISO 2725-1
Made In Germany
