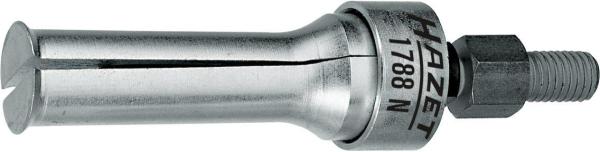

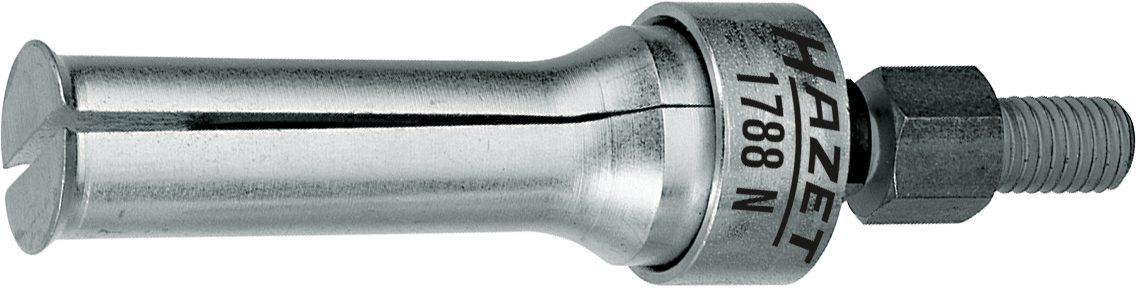

HAZET Internal Extractor and counterstays 1788N

To be able to use Jens Putzier Tools in full range, we recommend activating Javascript in your browser.

Join us on Facebook

Express Delivery

Support: info@jensputzier.com

We ship worldwide

Preview: HZ020953-001-VH

Preview: HZ020953-001-VH

Preview: HZ020953-001-VH

HZ020953-001-VH

HZ020953-001-VH

HZ020953-001-VH

US$99.48 *

Prices plus shipping costs

Ready to go! In your hands soon.
(see shipping costs for details)

Order number: HZ020953-001
GTIN-13 (EAN) 4000896147694
Suppliernumber: 1788N-12
Weight: 0.12 Kg
Customs tariff number: 82055980
Country of origin (COO): Germany

Application: For extracting ball bearings, outer rings and bushings To be used with counter... more

Application:
For extracting ball bearings, outer rings and bushings

To be used with counter stays 1788 N-835 and -4570

Made in Germany

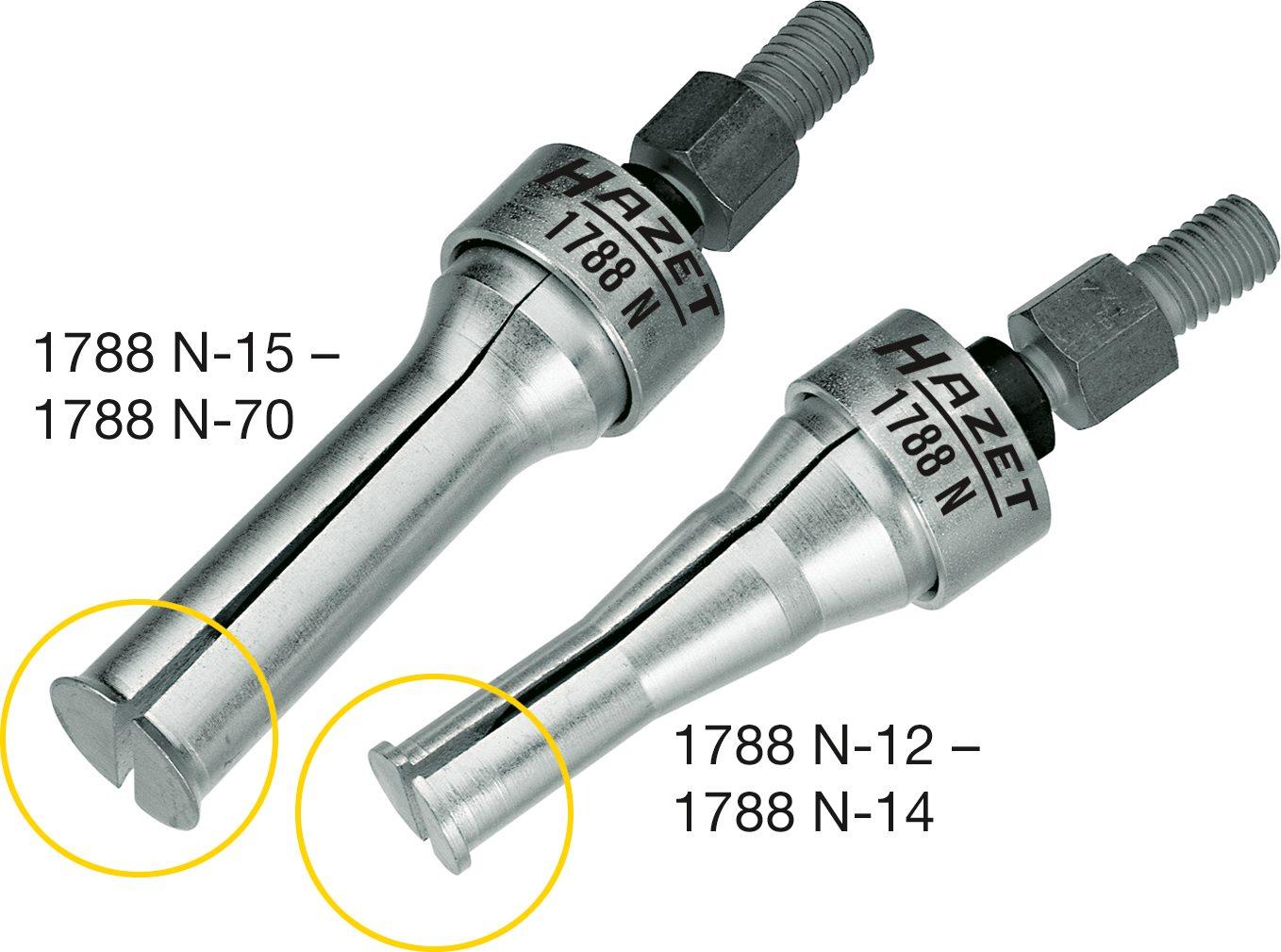

Art.#	Hazet part #	min. dia.	max. dia.	spindle thread
HZ020953-001	1788N-12	12	14	M10
HZ020953-002	1788N-14	14	19	M10
HZ020953-003	1788N-15	12	15	M10
HZ020953-004	1788N-19	15	19	M10
HZ020953-005	1788N-25	19	25	M10
HZ020953-006	1788N-30	25	30	M10
HZ020953-007	1788N-35	30	35	M10
HZ020953-008	1788N-45	35	45	M14x1.5
HZ020953-009	1788N-55	45	55	M14x1.5
HZ020953-010	1788N-70	55	70	M14x1.5
HZ020953-011	1788N-835
HZ020953-012	1788N-4570
