Brockhaus Heuer Compact Vise Set 118003 Size 120

NEW: The Compact carrying-case set
The Compact set is now also available in a practical carrying case, with a table clamp and various magnetic protective jaws.

This set includes:

Heuer compact vice 118 003

Heuer table clamp

Magnefix magnetic jaws

Type N (Neutral) For coarse to medium fine worked work pieces.

Type F (Fibre) For work pieces with finely milled, ground or polished surfaces.

Type G (Rubber) For thin walled pipes and pre-cut blanks as well as wood and plastic pieces.

Type P (Prisms) For work pieces in the most diverse shapes.

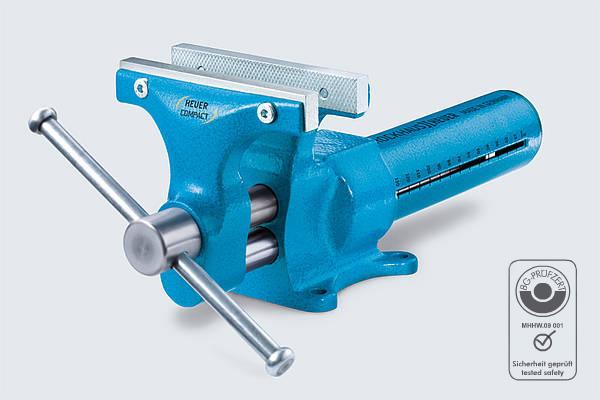

The HEUER Compact thanks its name to its very efficient design. Functionality was a key factor here and this with the customary high quality of -Brockhaus HEUER.

With a weight of 4.5 Kg and a powerful griping power of 10 kN it is the lightweight in its category. Of course the HEUER Compact offers enhanced clamping depth options and it is remarkably expandable with many standard accessory items from Brockhaus Heuer.

WORLD NOVELTY: HEUER Quicklaunch

The ingenious thing about it is the all new, revolutionary quick adjusting HEUER Quicklaunch. Thanks to this, large jaw width differences can be adjusted on the HEUER Compact in just the turn of a hand – from 0 to 130 mm in 3 seconds. Without operating the handle. The width gauge helps in the pre-adjustment. In the process the parallelism of the jaws when clamping is not affected by the tolerance of the spindle, which is necessary for an optimally functioning quick adjustment. A pressure spring warrants the safe locking in the desired position. This is also audio-visually perceptible.
The exchangeable, turnable jaws with smooth and grooved clamping surface create even more flexibility. The HEUER Compact is additionally equipped with pipe-gripping jaws integrated in the front and rear jaw. It too can be added on to. For example with the HEUER Table Clamp 100 or with the HEUER Rotary Table 100 and a large selection of magnetic protective jaws.
The HEUER Compact – our all-rounder in a mobile format.

• Span width 130 mm
• Span depth 65 mm
• Min+max. pipe-gripping jaw span-Ø 15-50 mm
• Weight 4,5 kg
• Item No. Compact Set 118 003
• Item No. Spare jaws116 120
